Horse Panels

Ask Lasest Price
Brand Name :	LNF-Farm Fencing
Model Number :	Australia And US standard
Certification :	ISO

Add to Cart

Product Details
Company Profile

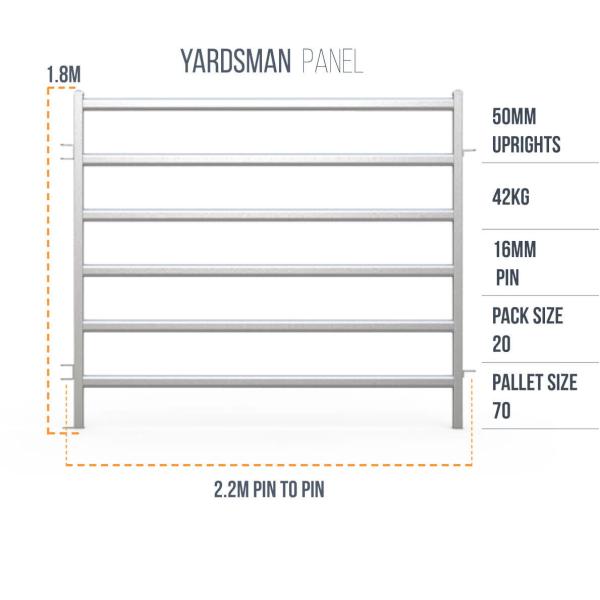

Horse Panels

Portable Yard Panels Livestock Panels

1.panels:

No. of Rails	Available in 3, 4, 5 or 6 Rails
Height x Length	1.8mx2.1m, 1.6x2.1m, 1.8mx2.4m and so on
pole style	Round pipe or square tube or oval tube
Pole specification	32mmO.D, 40mmO.D, RHS40mm, RHS50mm and so on

different specifications available

Horse Panels

2.different pipe styles:

Style1 : Round style Portable Yard Panels / Used Livestock Panels

material	pre hot dipped galvanized steel pipe
finishing(zinc coating)	mor than 15 microns
HeightxLength	1800mm x 2100mm
vertical pipe	32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness
horizontal rails	32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thck (6 round rails)
Welding	Fully welded post brackets
welds	bull bars are fully welded, each weld is protected with epoxy paint

Style 2 : Oval tube style Portable Yard Panels / Used Livestock Panels

material	pre hot dipped galvanized steel pipe
finishing(zinc coating)	more than 15 microns
HeightxLength	1800mm x 2100mm
Vertical pipe	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6 mm thicknss
Horizontal rails	30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails)
Welding	Fully welded post brackets
welds	bull bars are fully welded, each weld is protected with epoxy paint

Style 3 : Square tube style Portable Yard Panels / Used Livestock Panels

material	pre hot dipped galvanized steel pipe
finishing(zinc coating)	mor than 15 microns
HeightxLength	1800mm x 2100mm
vertical pipe	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness
horizontal rails	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails)
Welding	Fully welded post brackets
welds	bull bars are fully welded, each weld is protected with epoxy paint

Horse Panels

3.Cattle panel gate:

Height x Length:	2200mm x 2000mm
Frame:	Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps
Cattle Gate Horizontal rail:	40 mm x 80 mm x 1.6mm thick x 6 oval rails
Finishing:	hot dipped galvanized ,zinc coating:more than 230 g/m² Fully welded oval pipes, post &brackets ,heavy duty hinges

Horse Panels .

Product 2---American

Portable Yard Panels / Used Livestock Panels

1.panels

King Cattle Master Panels
Height	Length	Weight
64"	6'	64 lbs.
64"	8'	83 lbs.
64"	10'	98 lbs.
64"	12	116 lbs.
64"	14'	132 lbs.
64"	16'	150 lbs.

2.panel gates

King Cattle Master Gates
Height	Length	Weight
52"	4'	46 lbs.
52"	6'	61 lbs.
52"	8'	79 lbs.
52"	10'	95 lbs.
52"	12'	112 lbs.
52"	14'	128 lbs.

Packaging & Shipping

Portable Yard Panels Livestock Panels' packing:

unpacked,or steel pallet
