Flexible stainless steel cable mesh

Ask Lasest Price
Brand Name :	LNF-ROPE MESH
Model Number :	ROPE MESH 2"
Certification :	ISO
Price :	12.88$/m2
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	10000 sqm per week
Delivery Time :	5 work days

Add to Cart

Product Details
Company Profile

Flexible stainless steel cable mesh

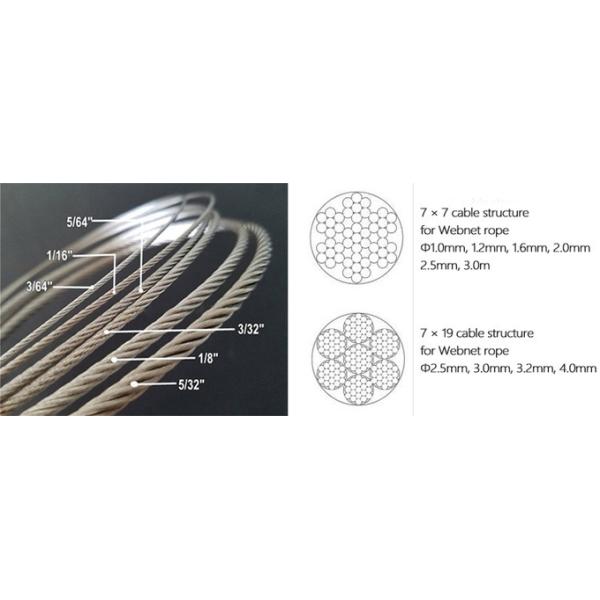

Flexible stainless steel cable mesh net material is produced by high-quality stainless steel wire cable; the stainless steel grade includes type 304, 304 L, 316 and 316L. Stainless Steel Wire Rope Fence Mesh structures have 7 x 7 and 7 x 19. All the material for producing Stainless Steel Wire Rope Fence Mesh was imported from South Korea and Japan, which have super quality. The standard Stainless Steel Wire Rope Fence Mesh diameter includes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4". Stainless steel wire rope mesh are mainly used in the hotels, shopping malls, supermarkets, office, indoor decoration, mechanical protective cover, electrical ventilation, aquaculture and many other industries.

Specification of the flexible stainless steel cable mesh

Type	Knotted cable mesh	Type	Ferrule cable mesh
Combination	Inter-woven	Combination	Seamless ferrule
Hole pattern	90-degree diamond hole	Hole pattern	60-degree diamond hole
Material	SS 304,304L,316,316L,etc	Material	SS 304,304L,316,316L,etc
Cable diameter	1.0~ 5.0 mm	Cable diameter	1.0~ 5.0 mm
Mesh size	10mm~ 300mm	Mesh size	20~ 300mm
Mesh Orientation	Horizontal, Vertical	Mesh Orientation	Horizontal, Vertical
Mesh panels size	Customising	Mesh panels size	Customising
Mesh colour	Stainless steel natural colour/ Black colour / Bronze colour	Mesh colour	Stainless steel natural colour/ Black colour / Bronze colour

Material of stainless steel wire rope mesh: AISI 304 or 316 stainless steel

We provide the standard specifications of the flexible stainless steel cable mesh.
Cable structure flexible stainless steel cable mesh	Cable diameter		Mesh opening size		Nominal break
Cable structure flexible stainless steel cable mesh	inch	mm	inch	mm	Ibs.
7x19	1/8	3.2	4.75x4.75	120x120	1600
7x19	1/8	3.2	4x4	102x102	1600
7x19	1/8	3.2	3.55x3.55	90x90	1600
7x19	1/8	3.2	3x3	76x76	1600
7x19	1/8	3.2	2x2	51x51	1600
7x7	3/32	2.4	4x4	102x102	920
7x7	3/32	2.4	3.55x3.55	90x90	920
7x7	3/32	2.4	3x3	76x76	920
7x7	3/32	2.4	2.4x2.4	60x60	920
7x7	3/32	2.4	2x2	51x51	920
7x7	5/64	2.0	3x3	76x76	676
7x7	5/64	2.0	2.4x2.4	60x60	676
7x7	5/64	2.0	2x2	51x51	676
7x7-flexible stainless steel cable mesh	5/64	2.0	1-1/2x1-1/2	38x38	676
7x7	1/16	1.6	3x3	76x76	480
7x7	1/16	1.6	2x2	51x51	480
7x7	1/16	1.6	1-1/2x1-1/2	38x38	480
7x7	1/16	1.6	1.2x1.2	30x30	480
7x7	1/16	1.6	1x1	25.4x25.4	480
7x7	3/64	1.2	1-1/2x1-1/2	38x38	270
7x7	3/64	1.2	1.2x1.2	30x30	270
7x7	3/64	1.2	1x1	25.4x25.4	270
7x7	3/64	1.2	4/5x4/5	20x20	270

In combination with architectural ropes, the flexible stainless steel cable mesh is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stairwells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
