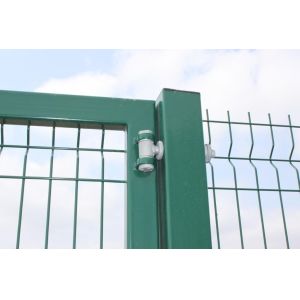

Standard Weld Wire Mesh Fence 2030mm x 2500mm ,Mesh Opening :50mm x
200mm V beams
| 0.63 m---2.43 m, as customer requirement |
| 2.0 m, 2.5 m, 3.0 m |
| 4.0 mm, 5.0 mm (after surface treatment) |
| 50 x 200 mm ,55 x 200 mm,50 x 150 mm, 55 x 100 mm |
| Normally, one bend per each 500 mm height |
| Galvanized then powder paintedGalvanized then pvc coated Hot dipped galvanized then powder painted Hot dipped galvanized then pvc coated Hot dipped galvanized only |
Colors
Standard colors are Green RAL6005,Black RAL9005,Gray RAL7016,Brown
RAL8014,Other color are available on request.
Standard Mesh fence is a group of wire mesh fence products, the
same feature is that length of fence is at the same number 2500mm
and due to width (height,530,1030,1230,2030mm etc) of mesh fence
have a rather wider range so at the daily using the standard mesh
fence can be stand almost all circumstance,from parking ,factory
,to garden government building and so on ! yes, they are
"all-around winner wire mesh fence products" .
What is anti-corrosion surface treatment of standard mesh fence?
Wire mesh Fence surface treatment take Hot dipped galvanized into
zinc pool absolutely as a priority
Choice, the black steel wire mesh fence after hot dipped galvanized
process its could durable as far as
Several Decade years even longer time but the hot dipped galvanized
defect its cost you so much Compare with other surface treatment
such as electro galvanized with PVC powder coated, electro
galvanized with PVC powder painting etc.
Now we offer 6 types of treatment of standard mesh fence
1.Hot Dipped Galvanized
2. Hot Dipped Galvanized then PVC/PE powder coated
3. Hot Dipped Galvanized then PVC/PE powder painting
No 1,2,3 as the option the durable of mesh fence will be up to
least 20 years
-------------------------------------------------------------------------------------------------------------------------------
4.Electro-Galvanized ( 2 years get rusting but the cost is rather
cheaper )
-------------------------------------------------------------------------------------------------------------------------------
5. Electro-Galvanized then PVC/PE powder coated
6. Electro-Galvanized then PVC/PE powder painting
NO 5 6 as the option the durable of wire mesh fence will up to
least 10 years
Specification of Standard Wire Mesh Fence
WIRE MESH FENCE PANEL
Panel: H X L (mm) | Mesh Opening | No Of Triangle Folds(Beams) | Diameter(mm) |
530 x2500 | 50mm x 200mm 55mm x 200mm | 2 | 4.0/4.5/5.0mm |
630 x2500 | 2 | 4.0/4.5/5.0mm |
830 x2500 | 2 | 4.0/4.5/5.0mm |
1030x2500 | 2 | 4.0/4.5/5.0mm |
1230x2500 | 2 | 4.0/4.5/5.0mm |
1530x2500 | 3 | 4.0/4.5/5.0mm |
1730x2500 | 3 | 4.0/4.5/5.0mm |
1830x2500 | 4 | 4.0/4.5/5.0mm |
2030x2500 | 4 | 4.0/4.5/5.0mm |
2430x2500 | 4 | 4.0/4.5/5.0mm |
NOTED
PVC POWDER COATED:3.00MM CORE WIRE/1.00MM POWDER THICKNESS/4.00MM
FINAL WIRE
PVC POWDER COATED:3.70MM CORE WIRE/0.80MM POWDER THICKNESS/4.50MM
FINAL WIRE
PVC POWDER COATED:4.20MM CORE WIRE/0.80MM POWDER THICKNESS/5.00MM
FINAL WIRE
PVC POWDER PAINTING: 3.90MM CORE WIRE/0.10MM POWDER
THCIKNESS/4.00MM FINAL WIRE
PVC POWDER PAINTING: 4.35MM CORE WIRE/0.15MM POWDER
THCIKNESS/4.50MM FINAL WIRE
PVC POWDER PAINTING: 4.85MM CORE WIRE/0.15MM POWDER
THCIKNESS/5.00MM FINAL WIRE
WIRE MESH FENCE POST
Panel: H X L (mm) | With Flange Post Length | Without Flange Post Length | Post Spec | Thick(mm) |
530 x2500 | 500mm | 1000mm | OD 48 Post OD 50 Post OD 60 Post Square 60x60 Post Square 50x50 Post Square 40x60 Post | 1.5/2.0/2.5 |
630 x2500 | 600mm | 1100mm | 1.5/2.0/2.5 |
830 x2500 | 800mm | 1300mm | 1.5/2.0/2.5 |
1030x2500 | 1000mm | 1500mm | 1.5/2.0/2.5 |
1230x2500 | 1200mm | 1700mm | 1.5/2.0/2.5 |
1530x2500 | 1500mm | 2000mm | 1.5/2.0/2.5 |
1730x2500 | 1700mm | 2200mm | 1.5/2.0/2.5 |
1830x2500 | 1800mm | 2300mm | 1.5/2.0/2.5 |
2030x2500 | 2000mm | 2500mm | 1.5/2.0/2.5 |
2430x2500 | 2400mm | 2900mm | 1.5/2.0/2.5 |
