High-Quality Chain wire Fence 2.5meter height x 10-meter mesh
opening 65mm x 65mm for Australia market
1. Both ends are wrapped with plastic cloth and then in bulk into
the container.
2. Both ends are wrapped with plastic cloth and mesh bag then with
pallets.
3. Special packaging requests are also accommodated.
Our Services
1.Provide sample (about 7 days)
2.Factory direct sale
3. It can customize according to the requirements or drawings
4. 24 hours online
5.With the fastest speed of delivery
6.Answer questions in a timely manner
7.After sales service installation instructions or other quality
problems
Company Information
| Company name | TOP FENCE CO.LTD |
| Factory area | 1,000-3,000 square meters |
| Address | Xihuan Industrial Zone, Anping County, Hengshui, Hebei, China
(Mainland) |
| Number of R&D Staff | 5-10 peoples |
| Number of QC Staff | 5-10 peoples |
| Number of Employees | 51-100 peoples |
| Main Products | Chain wire Fence, Temporary Fence, Crowd Control Barriers |
| Main Markets | South Asia, South America, Western Europe, North America, Africa,
Oceania, Mid East, etc. |
| Total Annual Sales Volume | US$10 Million - US$50 Million |
| Export Percentage | 65%-85% |
| Contract Manufacturing | OEM Service Offered Design Service Offered Buyer Label Offered |
| Our Characteristic | OEM&ODM, We can according to drawing production |

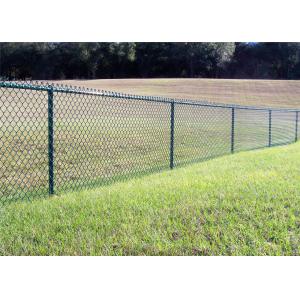

Chain link fence is available in heights from 3 feet to 12 feet,
providing a robust and secure perimeter fencing.
Most manufacturers supply two grades of chain link fencing:
Residential and Commercial. Commercial.
chain link fencing is made from heavier gauge wire. Matching posts,
rails, and fittings are supplied. In addition to being galvanized, chain link fencing may have an extruded
polyvinyl chloride coating. This provides protection from corrosion and also offers a choice of colors.
chain link fence common specification :
| The dimension of Galvanized Chian Link Mesh |
| Mesh | Wire Diameter | Width | Length |
| 40mmx40mm | 1.8mm--3.0mm | 0.5m--4.0m | 5m-25m |
| 50mmx50mm | 1.8mm--3.5mm | 0.5m--4.0m | 5m-25m |
| 60mmx60mm | 1.8mm--4.0mm | 0.5m--4.0m | 5m-25m |
| 80mmx80mm | 2.5mm--4.0mm | 0.5m--4.0m | 5m-25m |
| 100mmx100mm | 2.5mm--4.0mm | 0.5m--4.0m | 5m-25m |
| Dimension of PVC Coated Chian Link Mesh |
| Mesh | Wire Diameter | Width | Length |
| 40mmx40mm | 2.8mm--3.8mm | 0.5m--4.0m | 5m-25m |
| 50mmx50mm | 3.0mm--5.0mm | 0.5m--4.0m | 5m-25m |
| 60mmx60mm | 3.0mm--5.0mm | 0.5m--4.0m | 5m-25m |
| 80mmx80mm | 3.0mm--5.0mm | 0.5m--4.0m | 5m-25m |
| 100mmx100mm | 3.0mm--5.0mm | 0.5m--4.0m | 5m-25m |
Chain link fence surface treatment :
| Surface treatment | Min | Max |
| Electro-Galvanized | 15g/m2 | 25g/ m2 |
| Hot dip galvanized | 30/ m2 | 366g/m2 |
| PVC/PE Coated | 400microns | 1000microns |
CHOOSING THE BEST TYPE :
The main considerations are the height of the fence, the thickness
of the wire, and the finish of the wire.
Height
Chain link fences may be anything from 3 feet the 12 feet high, the
highest being generally used for surround sports areas where it is important to prevent balls escaping. Lower chain
link fences for use around homes can be fitted with privacy slats.
Thickness of wire
The thickness of the wire for chain link fences can be quite
confusing. Manufacturers will usually refer to the thickness of the wire being a certain 'gauge', for example, 11 or 12 gauge.
Oddly, the higher the number of the
gauge, the thinner the wire. Thus, 11 gauge corresponds to a
thickness of 0.120 inches, and a 12 gauge corresponds to a thickness of only 0.105 inches. Although gauges can vary
between 6 and 14, the most common gauges for chain link fencing are 11, 11.5 and 12 gauge.
Finishes
Chain link fence is normally made from zinc galvanized steel wire,
with the galvanizing being applied either before or after the weaving of the wire. It is preferable for the
galvanizing to the applied before weaving, to ensure that all surfaces are fully galvanized. Of course, you can also
select the PVC/PE coated chain link fence.
Edge type: Closed edge and twisted barbed edge

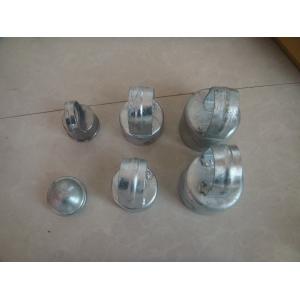

chain link fence fittings (terminal post, end post, corner post,
gate post, line pot installing) :
chain link fence fittings installation live-action :
chain link fence producing process :
