High Security Clearvu Wire Fence Panels 1800mmx2515mm width

Ask Lasest Price
Brand Name :	LNF-Clearvu Fence
Model Number :	3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire
Certification :	ISO
Price :	18.66$ per liner meter
Payment Terms :	TT30% deposit balance 70% at sight of finished products
Supply Ability :	10000 liner meters
Delivery Time :	7 work days

Add to Cart

Product Details
Company Profile

High Security Clearvu Wire Fence Panels 1800mmx2515mm width

High-security fence

358 Anti Climb High Security Fence,Clearvu clear view Fence

"358 fence" comes from its measurements 3"*0.5"*8" gauges which equates to approx.76.2mm*12.7mm*4mm(Length*Height*Diameter) in metric.
 358 security fence are extremely difficult to penetrate.with the small mesh aperture being effectively finger proof,and extremely difficult to attack using conventional hand tools.

High Security Clearvu Wire Fence Panels 1800mmx2515mm width

Name :	Anti climb fence/Clear view fence/Clearvu fence/ High security wire fence
Usage :	Farm/House/Land/Project/Jail/Warehouse/car parking/ school etc
Treatment :	galvanized + pvc coated; galvanized + powder coated; hot dipped galvanized after welding
Height :	1.2m; 1.5m; 1.8m; 2m; 2.2m; 2.5m etc
Wide :	2.2m; 2.5m etc
Wire mesh:	12.7x76.2x4mm (3"×0.5"×8 gauges)
Post :	50x50mm; 60x60mm; etc
Color :	black, green, blue, etc

Production

Other design is available

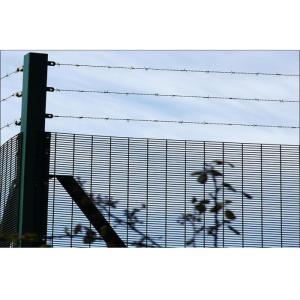

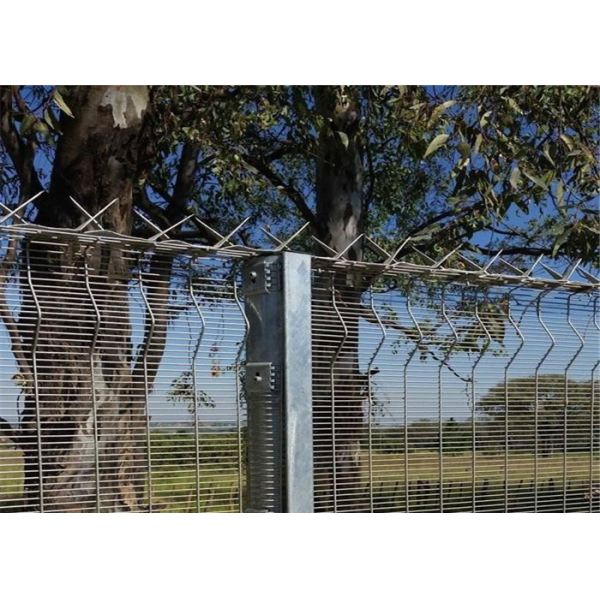

Wall spike on the top V arm, concertina wire, barbed wire on the top

angle plate on the top electric fence on the top

Beta fence post I beam post with electric fence at both side

Product packaging

)Packing with Plastic Film and metal packing metal belt.
)Packing with carton;wooden case;pallet.
)According to customers requirement.

Material: Low Carbon steel wire Q195
Type:Welded mesh
MOQ:10 sets
Surface Treatment: Electric galvanized,hot dipped galvanized, spray, PVE coated, PE coated
Technique: Welded
Usage: Used for garden,road,playground,park etc
Packaging Details:
Packed with plastic film then on the pallets and then in wooden box
Delivery Detail:10-15 days after received
your deposit

Specifications

Our Products	358 fence & Anti Climb Fence & 358 Anti Climb Fence
Surface treatment	Electric galvanized, hot dipped galvanized, spray, PVE coated, PE coated
Colors	Green, red, dark green, grass green, black, white, yellow, blue, and so on
Characteristics	(1)It is easy to work,bright color, easy to maintain. (2)Difficult to corrosion, long life expectancy. (3)uniform mesh,flat surface,high quality.
Packing	1.LCL: packed with plastic film then on the pallets 2.FCL: Nude packing 3.Other special package according to customers' requirements.
Payment Terms	T/T( 30% deposit , 70% balance against BL copy ) ,or L/C, Paypal, Western Union,MoneyGram, Credit Card ,OA

Specifications

Master View 358	2.1m	2.4m	3.0m
Panel Height	2134mm	2438mm	2997mm
Panel Width	2515mm	2515mm	2515mm
Mesh Size	12.7x76.2mm	12.7x76.2mm	12.7x76.2mm
Horizontal Wire	4mm	4mm	4mm
Vertical Wire	4mm	4mm	4mm
Panel Weight	50kg	57kg	70kg
Posts	60x90x4mm	60x90x4mm	80x80x4mm
Post Length	2.8m	3.1m	4.0m
Clamp Bar	40x6m slotted	40x6m slotted	40x6m slotted
Fixings	8 security nuts
No. Of fixings	8	9	11
Other specifications could be customized by your requirements

Used for park

Used for Prison security

Used for factory

Produce process

Packing & Shipping

LCL: packed with plastic film then on the pallets
FCL: Nude packing
Other special package according to customers' requirements.

Loading quantity: 130sets per 20ft container, 280sets per 40ft HQ.
Delivery time: Within 15-30days after receipt of advanced payment.

High security: The panels are heavy welded mesh with small rectangular. Due to the large wire diameter (4 mm)
and the restricted width of the mesh (12.7 x76.2mm ) offers maximum security.

Attractive design: The horizontal bends make the system ideally suitable for an environment where security and
aesthetics go hand in hand.

Long lifetime: The coating technology is state of the art and guarantees extra high longevity.

Good viewing visibility: In spite of the small mesh aperture the see-through characteristics remain unimpaired
when viewed head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.

Complete system: The system includes panels with adapted posts and a specific fixing system.

Specification

Material	Iron, galvanized steel, galvanized wire
Surface treatment	Hot dipped galvanized, galvanized steel+powder coated
Connecting methods	Iron bar, Metal clip, plastic clip
Height	1000mm to 6000mm popular: 2500mm, 3000mm
Width	1000mm to 3000mm popular: 2200mm, 2500mm
Wire thickness	4mm to 6mm standard size is 4mm (BWG Gauge 8#)
Hole size	76.2mm12.7mm (3 inch0.5 inches)
Post	Square post, the rectangular post popular: 6060mm, 8060mm
V-top	Including angle iron, barbed wire, razor barbed wire

Application

Residential: such as properties, companies, gardens, house, etc.
Field: such as airport, playground, boundary, anti-intruder.
Protection: such as highway, railway, bridge, etc.
Prison, military, public utilities.

High Security Clearvu Wire Fence Panels 1800mmx2515mm width

Installation: by using a flat bar

High Security Clearvu Wire Fence Panels 1800mmx2515mm width

Installation: by using the metal clip

High Security Clearvu Wire Fence Panels 1800mmx2515mm width

High Security Clearvu Wire Fence Panels 1800mmx2515mm width
