PVC Coated Wire Mesh Fence Panels 2030mm x 2500mm

Ask Lasest Price
Brand Name :	LNF-PVC coated Wire Mesh Fence
Model Number :	*Mesh 50mm200mm with bended**
Certification :	ISO
Price :	8.88$ per liner meter
Payment Terms :	TT30% deposit balance 70% at sight of finished products
Supply Ability :	10000 liner meters
Delivery Time :	7 work days

Add to Cart

Product Details
Company Profile

PVC Coated Wire Mesh Fence Panels 2030mm x 2500mm

1. Brief introduction of the 2x4 PVC coated welded wire mesh fence

It is a rigid structure of security fencing system. Welded wire mesh fence can be used for private estates, industrial areas, and sports facilities.

Welded Wire Mesh Security Fencing is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid fence.

A number of different designs are manufactured from Ø 3 mm to Ø 5 mm wire at varying spacings for economy or strength.

The mesh size has a dimension of 50 x 200 mm, width 2500 mm panels.

Welded wire mesh fencing offers great strength and endurance to bending over the whole surface and we add to 2 to 4 folds in a "V".

2. Specification of the 2x4 PVC coated welded wire mesh fence

Fence Height cm	Fence Length(2m)					Fence Length(2.5m)
	Wire Gauge	Wire Diameter mm	Opening cm	Weight kg/piece	Fixing Pole	Wire Gauge	Wire Diameter mm	Opening cm	Weight kg/piece	Fixing Pole
	Wire Gauge	Wire Diameter mm	Opening cm	Weight kg/piece	Weight kg/set	Wire Gauge	Wire Diameter mm	Opening cm	Weight kg/piece	Weight kg/set
60	10#/8#	3.2 4	5X12	6.5	1.9	10#/8#	3.2 4	5X12	8.6	1.9
80	10#/8#	3.2 4	5X12	7.5	2.3	10#/8#	3.2 4	5X12	9.9	2.3
100	10#/8#	3.2 4	5X12	8.5	2.7	10#/8#	3.2 4	5X12	11.2	2.7
120	10#/8#	3.2 4	5X12	9	3.1	10#/8#	3.2 4	5X12	11.9	3.1
150	10#/8#	3.2 4	5X12	11	3.7	10#/8#	3.2 4	5X12	14.5	3.7
180	10#/8#	3.2 4	5X12	12.5	4.3	10#/8#	3.2 4	5X12	16.5	4.3
200	10#/8#	3.2 4	5X12	13.5	4.7	10#/8#	3.2 4	5X12	17.8	4.7

4. Comparison of the powder coated and PVC coated 2x4 PVC coated welded wire mesh fence

Note: 1. The PVC Coating thickness is thicker than that of Powder Coating

2. The surface of Powder Coating is more smooth

5. Working progress of 2x4 PVC coated welded wire mesh fence

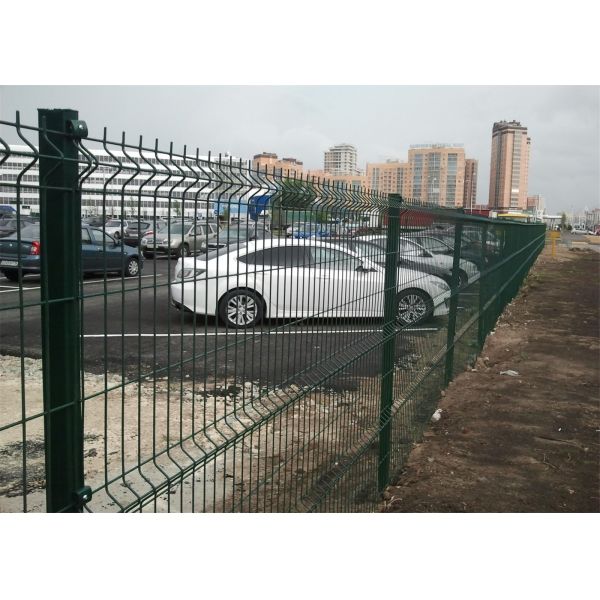

6. Application of the 2x4 PVC coated welded wire mesh fence

Packaging & Shipping

7. Packing and shipping of the 2x4 PVC coated welded wire mesh fence

1>it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels

2>it has 4 metal corners to keep the pallet more strong.

3>it has a metal plate under the plastic bandage to reduce the pressure of fence panels.

4>it has a wooden plate at the top of fence panel which can protect the fence panels avoid being crushed

by other pallets.

3. Fence post specification of the 2x4 PVC coated welded wire mesh fence

Fence Post
Post Style	Post Size	Post height
Rectangle post	40601.2mm;40601.5mm;40602mm	1.63m;1.83m;2.1m
Square Post	40401.2mm;40401.5mm;60602mm; 60602.5mm	2.13m;2.2m;2.23m; 2.4m
Peach post	5070mm;70100mm	2.53m;2.6m
Round post	38mm1.2mm;401.5mm;421.5mm;482mm	2.63m

PVC Coated Wire Mesh Fence Panels 2030mm x 2500mm
