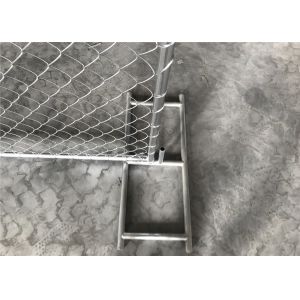

HDG1.2 oz/ft Temporary Chain Link Fence Height 4' 6' 8' Height 9' 9.5' 10' 12' Width Chain Mesh 57mm x 57mm x 2.7mm dia

Chain link temporary fence (also called portable fence) is a kind of flexibility and extremely strong mesh fencing, mainly for temporary isolation, temporary partition, in various construction sites. For instance, road maintenance, building construction project area, highway, drainage tubes repairing area, etc.

The benefits of temporary chain link fence can be divided into three parts. First, chain link fence is light that convenient for movie to everywhere; second, chain link fence combine with fabric sheet is equal to windbreak, beneficial for stopping stone, debris fly off the house that was under construction; third, temporary fence hanging warn sign to tell people be careful when they pass by construction sites, also capable of avoiding people stumble in the darkness.

Application place

• Road maintenance;
• House floor maintenance;
• Administrative building construction;
• House construction;
• Highway maintenance;
• Balcony.

CPF-01: Temporary chain link fence in the place where the ground penetration is undesirable.

CPF-02: Temporary fencing hanging warning sign to forbid people access the construction site.

CPF-03: Temporary fence consists of green fabric sheet and chain link fence to prevent stone, debris fly off that house that cause injuries.

CPF-04: Black temporary fence avoid people fall down to the hole.

CPF-05: Galvanized chain link portable fence around the construction means restricted access.

Specification

• Material: carbon steel chain link mesh;
• Surface treatment: galvanized before woven, vinyl coating, PVC coating;
• Wire diameter: 2 mm, 3 mm, 4 mm;
• Height: 1.5 m, 1.8 m, 2 m, 2.1 m;
• Mesh opening: 50 × 50 mm, 60 × 60 mm, 80 × 80 mm, 100 × 100 mm;

Feature

• Light-weight;
• Convenient for moving and Fixing;
• Low-cost;
• Qualified for any construction sites;
• Warn people should not get close even in darkness.

• 1⅝" / 1.625inch /41.20mm outer tubing wall thickness 16Ga/1.60mm wall thick 6'x12'
• 1¼" / 1.250inch/ 32.00mm outer tubing wall thickness 16Ga/1.60mm wall thick 8'x12'
• 1⅗"/ 1.60inch/ 40.00mm outer tubing wall thickness 16Ga/1.60mm wall thick 4'x12'

Temporary Chain Link Fence /Construction Fence Panels Spec
Tubing	1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on
Thickness of Tubing	14ga/2.00mm 14.5ga/1.90mm 15ga/1.80mm 15.5ga/1.70mm 16ga /1.6mm 16.5ga/1.50mm 17ga1.42mm 18ga 1.22mm
Chain mesh aperture	2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Height	4ft/1220mm 6ft/1820mm 8ft/2420mm
Width	12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size	6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge	10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Base Optional 1	36" length x 30" width x 8"Height /914mmx762mmx203mm
Base Optional 2	36" length x 16" width x 8" Height /914mmx406mmx203mm
Base Optional 3	30" length x 18" width x 8" Height /762mm x460mm x203mm
Standard	ASTM A392-06
Steel	Galvanized Steel Construction
Finish	Corrosion-Resistant Zinc Coating
Transport Packing	Metal pallet Wrapped with Plastic
HDG zinc thickness	14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

TEMPORARY FENCE BASE -TOPFENCE001STEEL BASE
Size1	36"length x30" widthx8"Height /914mmx762mmx203mm
Size2	36" length x16" widthx8" Height /914mmx406mmx203mm
Size3	30" length x 18" width x 8" Height /762mm x460mm x203mm
Finish	Available hot dipped galvanized or pr-galvanized 100gram-600 gram/SQM
Color	After powder coated available all color
Packing	Metal pallet wrapped with plastic film
Feature	Temporary Chain Link Fence Base
Materials	HDG steel all ARC full welding
Photos

TEMPORARY FENCE BASE -TOPFENCE002HDPE
Length	620mm
Width	230mm
Height	130mm
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	HDPE
Photos

TEMPORARY FENCE BASE -TOPFENCE004HDPE
Length	600mm
Width	220mm
Height	150mm
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	HDPE
Photos

TEMPORARY FENCE BASE -TOPFENCE005HDPE
Length	600mm
Width	220mm
Height	150mm
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color	any color
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	HDPE
Photos

TEMPORARY FENCE BASE -TOPFENCE006HDPE
Length	620MM
Width	230MM
Height	90MM
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color
Packing	Metal pallet wrapped with plastic film
Feature	parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials	HDPE
Photos

Temporary Chain link Construction Fence Clips

2”/50mmmm center distance temporary fencing clips suit OD 25mm OD 32mm OD38mm OD 40mm OD 42mm outer pipes
Thickness of Clips	General Standard 3.75mm-4.00mm Available customized
Finish	Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM
Bolts	Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter
Nuts	15.9mm /17mm and so on depend on customers requirements
Packing	All packing in papers made carton available assemble together
PHOTOS

3”/75mm center distance temporary fencing clips suit OD 25mm OD 32mm OD38mm OD 40mm OD 42mm outer pipes
Thickness of Clips	General Standard 3.75mm-4.00mm Available customized
Finish	Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM
Bolts	Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter
Nuts	15.9mm /17mm and so on depend on customers requirements
Packing	All packing in papers made carton available assemble together
PHOTOS

90mm/3.5" center distance temporary fencing clips
Thickness of Clips	General Standard 3.75mm-4.00mm Available customized
Finish	Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM
Bolts	Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter
Nuts	15.9mm /17mm and so on depend on customers requirements
Packing	All packing in papers made carton available assemble together
PHOTOS

100mm /4" center distance clips for Outer Diameter Temp Fence Post
Thickness of Clips	General Standard 3.75mm-4.00mm Available customized
Finish	Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM
Bolts	Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter
Nuts	15.9mm /17mm and so on depend on customers requirements
Packing	All packing in papers made carton available assemble together
PHOTOS

LEADING NEW FENCE co to accept customized order just forward us you ideal chain link fence panels drawing or photo we will bring them to reality meet all requirements of you required.

Founded in 2010, Top Fencing Co.Ltd is an ISO certificated firm located in Hebei District, called the land of the wire mesh. We focused on creating stainless-steel wire mesh and wire mesh fences during the initial functional years. After over ten years of firm history, our firm progressed rapidly from a small company to a contemporary, smoothly running entity with four branch manufacturing facilities and more than 120 staff members. To better suit our primary overseas market, in 2012, we signed up "High-quality Fence" Brands in Hong Kong, primarily in charge of overseas advertising. As well as to the security of modern technology and also brand name, we have obtained a license for Easy Barriers & Portable Fence( Top Cable Mesh) as well as signed up "Top", "Leading Secure fencing", Premium Secure fencing" as trade-mark. We're constantly working to improve our criteria and service to fulfil today's challenges while staying committed to providing premium items and performance. Today Top Fencing offers various services and options in supplying premium wire mesh products for commercial, industrial, and agricultural
